Foot & Ankle
AllFit™ VA Plate System
Plating SystemsThe AllFit™ VA Plate System represents a paradigm shift in extremity reconstruction. Engineered as a comprehensive solution, this single system provides total freedom across the entire foot — addressing forefoot, midfoot, hindfoot, and complex fusion procedures with a unified approach. By integrating universal screw compatibility with advanced anatomical plate designs, it streamlines the surgical workflow without compromising stability or clinical outcomes.
Technical Specifications
| VA Locking Range | ±30° |
| Screw Platform | 2.7 mm & 3.5 mm (universal) |
| Straight Plate Holes | 2–7 (23.4–58.4 mm) |
| Fusion Plate Sizes | Small 41 mm / Medium 47 mm / Large 53 mm |
Key Clinical Features
- ±30° Variable Angle (VA) Locking — advanced VA technology offers 30° of directional control for precise screw trajectories tailored to the patient's unique anatomy.

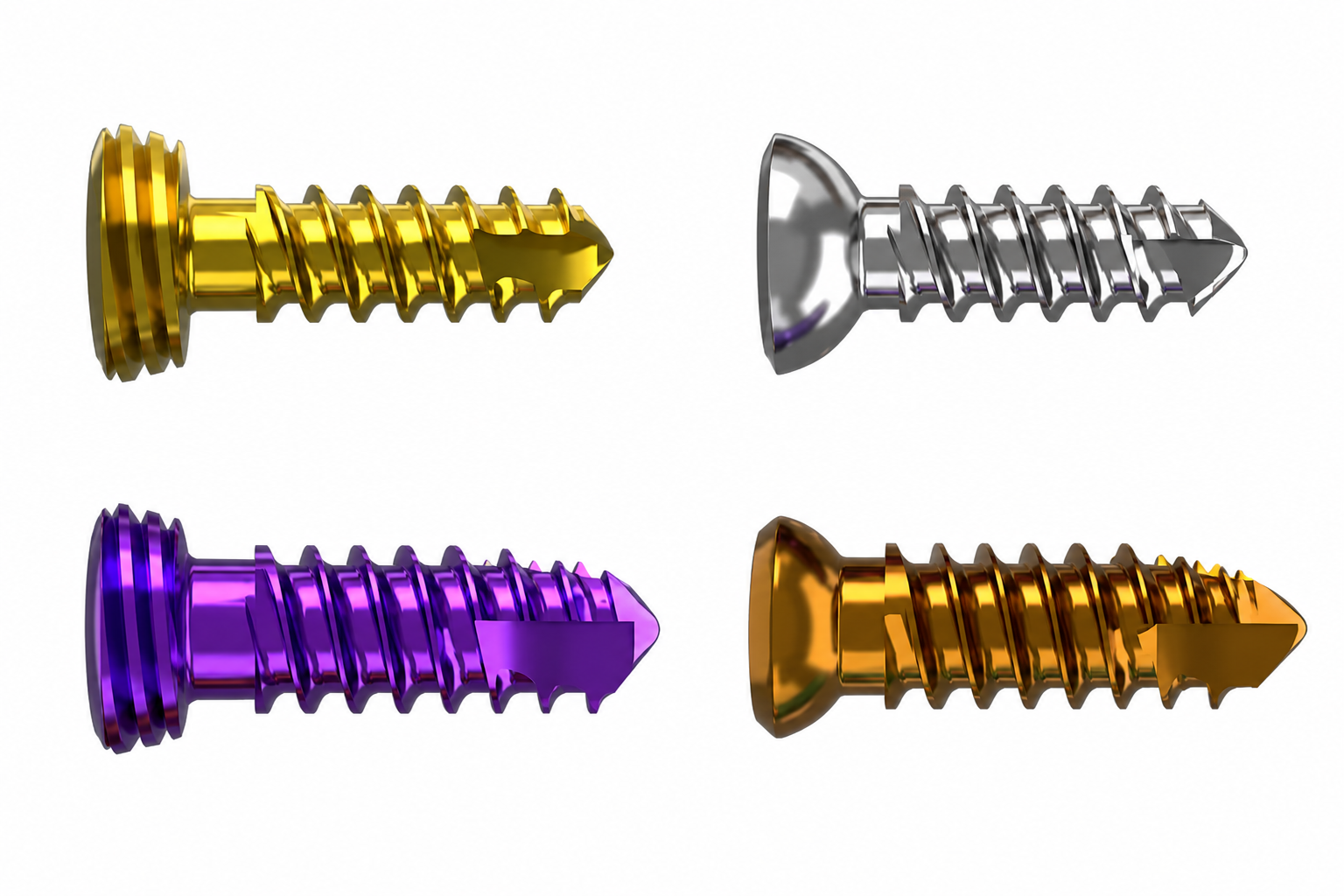

- Universal Platform Compatibility — a simplified 2.7 mm and 3.5 mm screw platform works across every plate in the system, reducing inventory complexity.
- FlushFit™ Contouring — low-profile plates and streamlined screw heads sit seamlessly within the implant, minimising soft-tissue irritation and stress concentrations.
- Hybrid Fixation Technology — plates feature both locking and compression holes, enabling strong, adaptable constructs for diverse bone qualities.

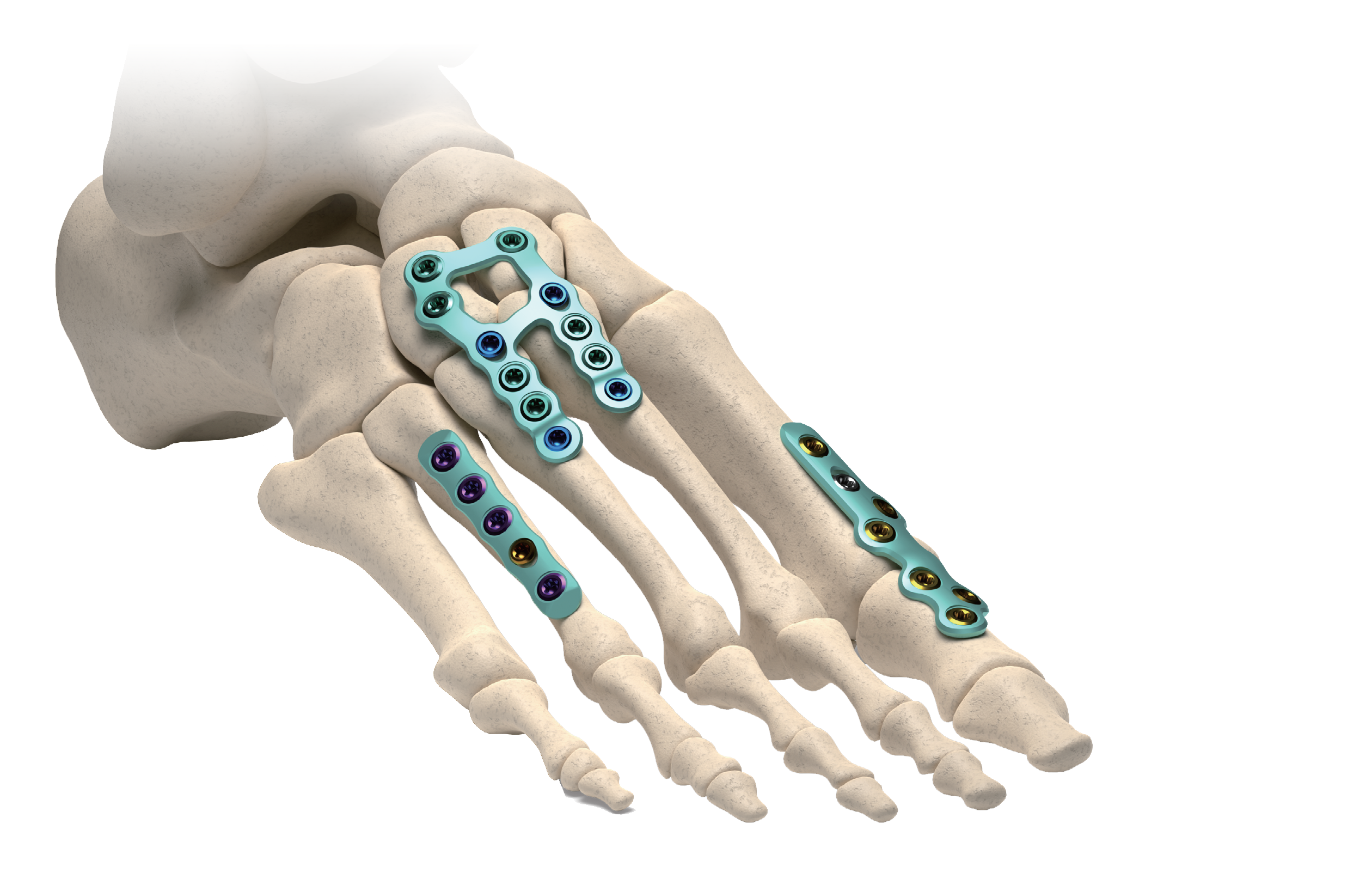

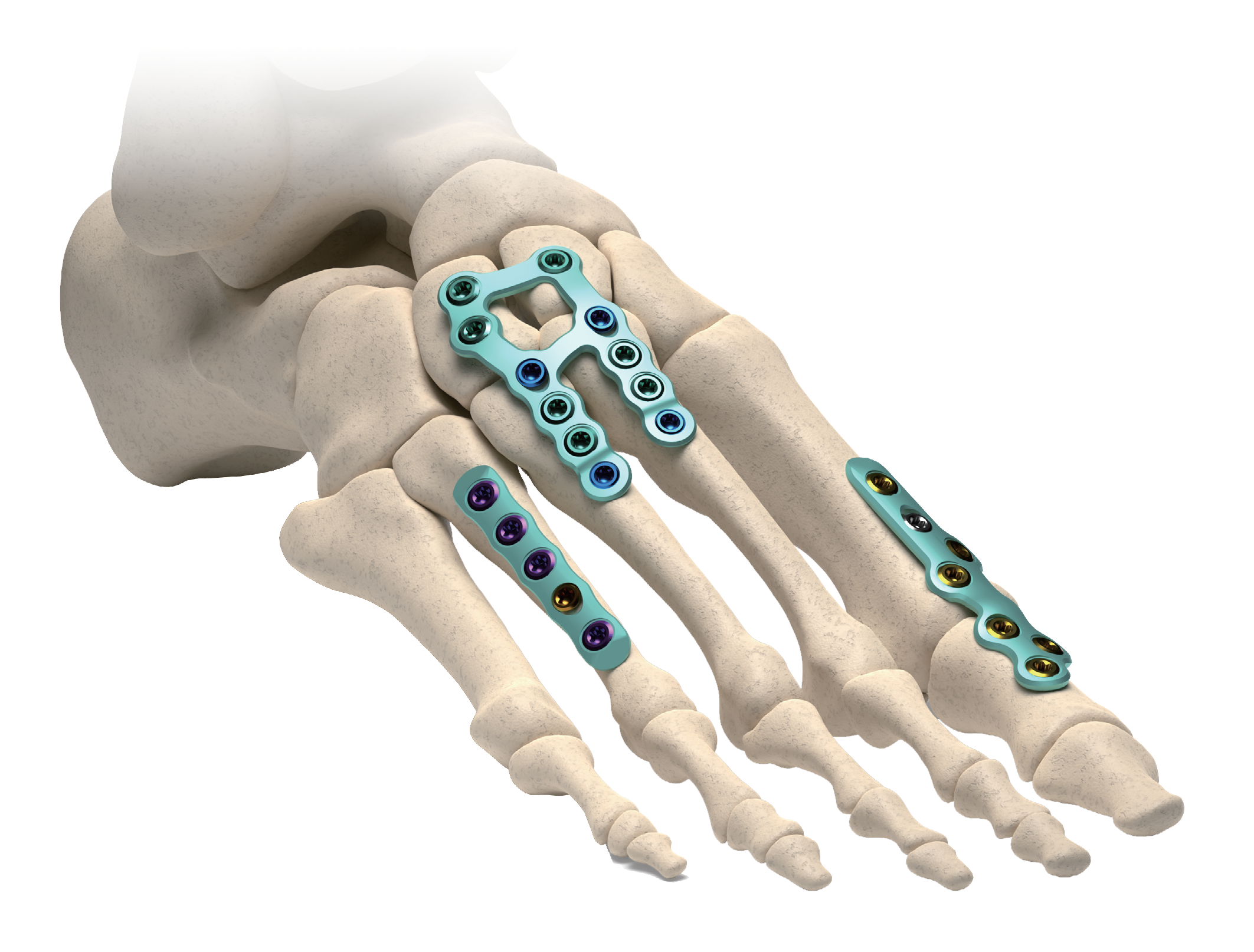

- Comprehensive Plate Portfolio — straight, anatomical L- and T-plates, Evans, Lisfranc, MTP, and doublehead fusion plates cover the full foot & ankle spectrum.
System Components
| AllFit VA Straight Locking Compression Plate | 2–7 holes · 23.4–58.4 mm |
| AllFit L-Plate (Left/Right) | 4/5/6 holes · 37.5–52.5 mm |

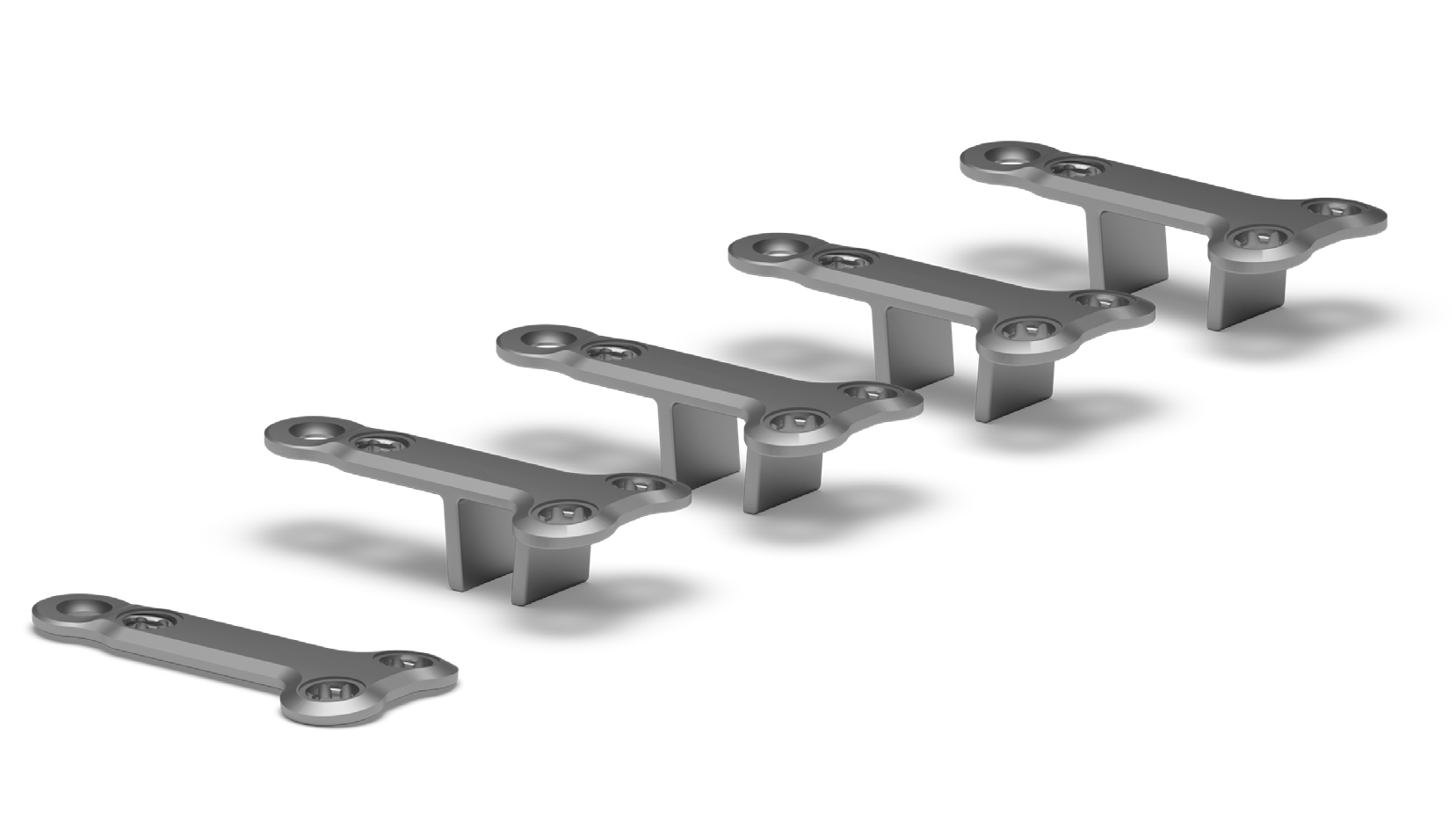

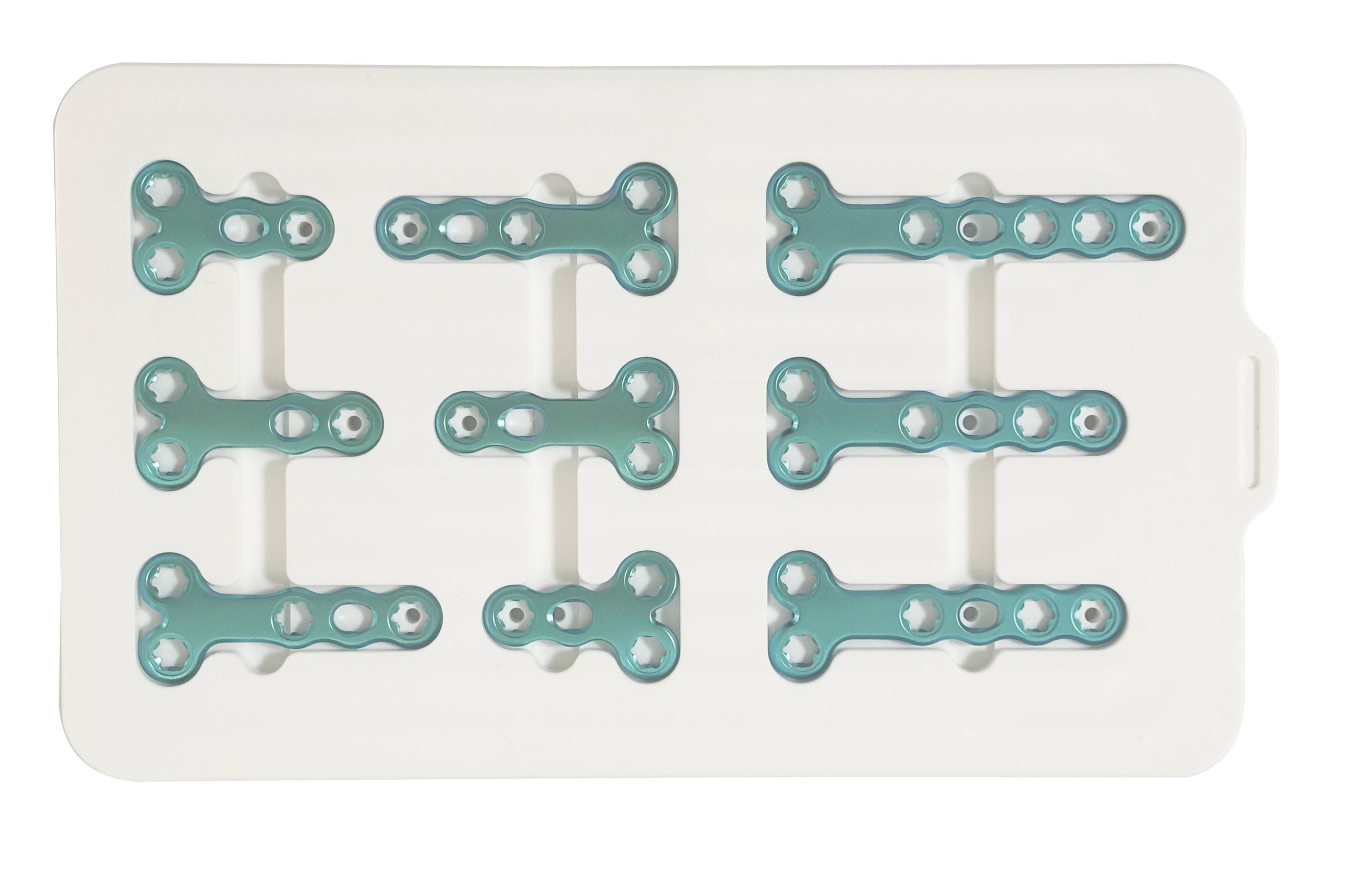

| AllFit T-Plate | 26–55 mm |
| AllFit Evans T-Plate | Lateral column lengthening |
| AllFit Lisfranc Plate | Midfoot ligamentous/bony injury |
| AllFit MTP Plate | First MTP joint fusion |
| AllFit Doublehead Fusion Plate | Small 41 / Medium 47 / Large 53 mm |
