Foot & Ankle
TalarLock™ Subtalar Arthroereisis System

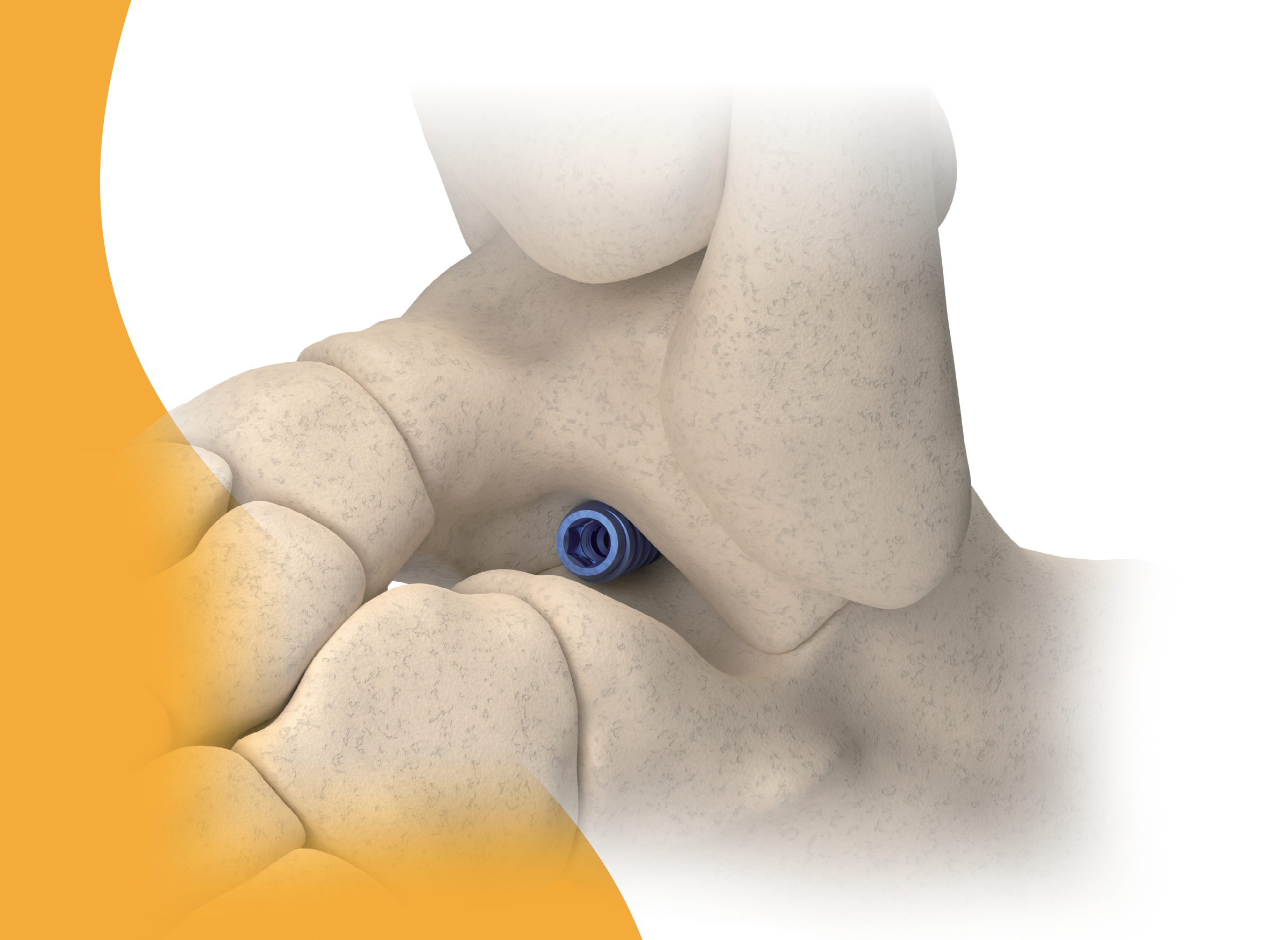

Subtalar ArthroereisisThe TalarLock™ is a specialised arthroereisis implant designed to stabilise the subtalar joint and correct hyperpronation. By preventing the talus from shifting too far downward or backward, the device preserves natural joint movement while limiting the excessive inward rolling of the foot and its associated complications. It is supported by a dedicated set of single-use surgical instruments for precise delivery and placement.
Technical Specifications
| Implant Geometries | Cylindrical, Conical, Anatomical |
| Size Range | 7–11 mm |
| Approach | Sinus tarsi (2–3 mm incision) |
| Use | Single-use implants & guide wires |
Key Clinical Features

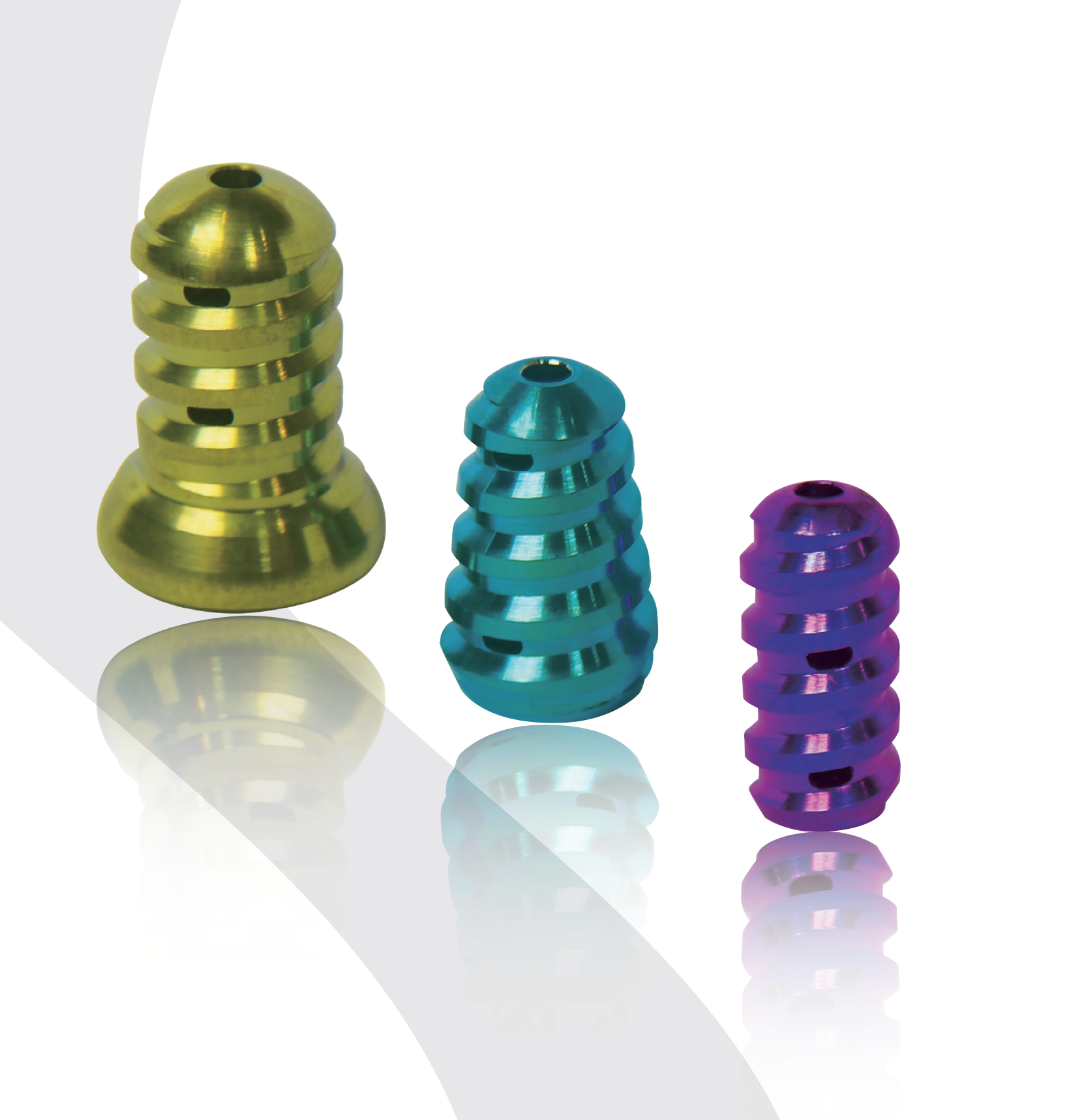

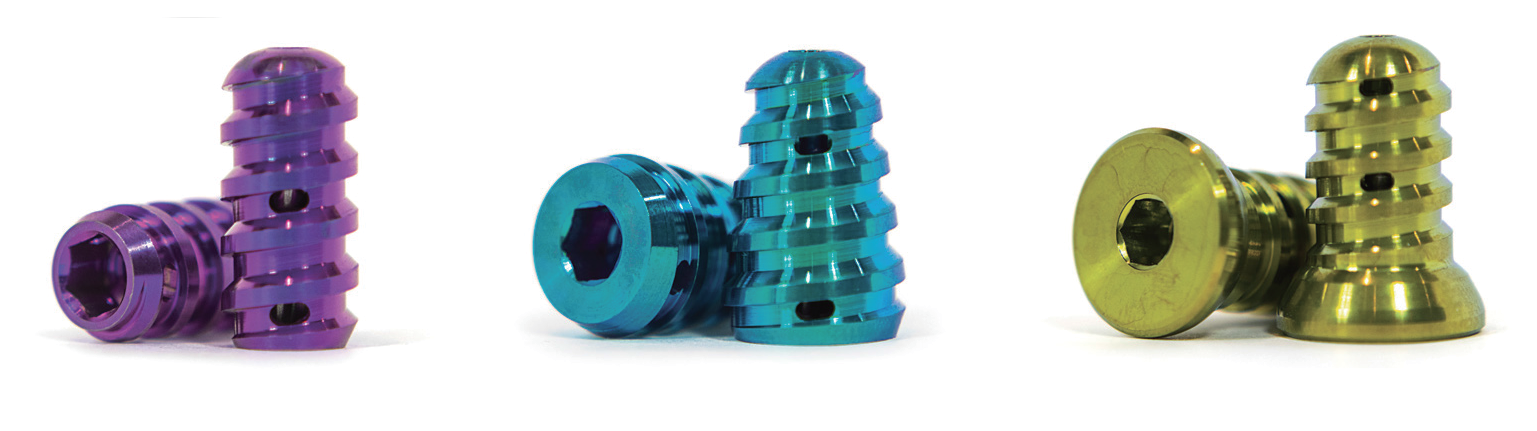

- Three Implant Geometries — cylindrical, conical, and anatomical options let surgeons select the best fit for specific anatomy.
- Motion-Preserving Correction — limits excessive pronation while preserving natural subtalar joint movement.
- Comprehensive Size Range — implants available from 7 mm to 11 mm to accommodate diverse patient morphologies.
- Integrated Single-Use Instrumentation — guide wires, trial spacers, driver shafts, and removal drivers streamline implantation.
- Broad Clinical Indications — treats hypermobile pes valgus, PTTD, congenital flexible flatfoot, subtalar instability, and severe pronation.

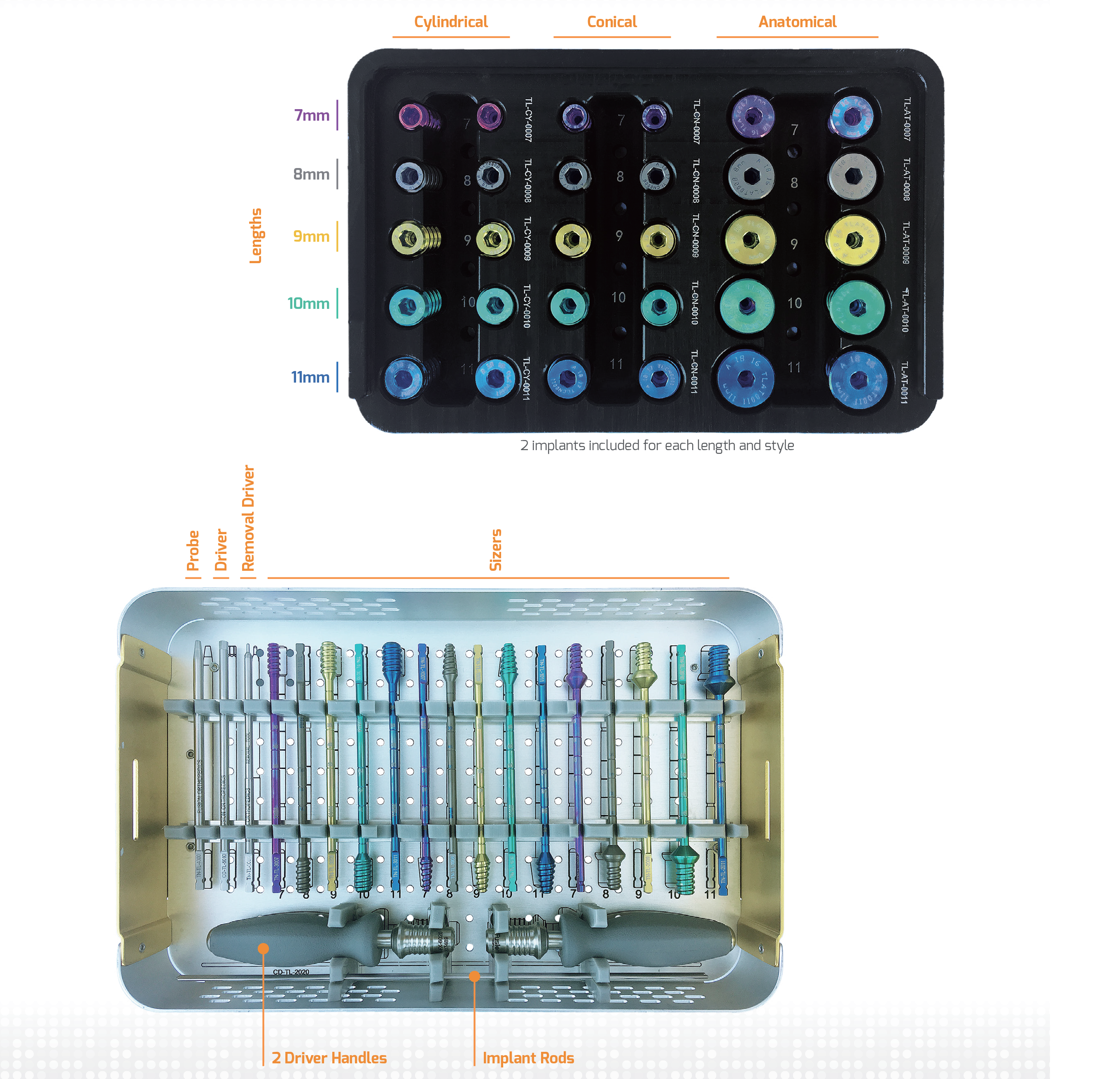

System Components
| TalarLock Subtalar Implant (Cylindrical) | 7–11 mm |
| TalarLock Subtalar Implant (Conical) | 7–11 mm |
| TalarLock Subtalar Implant (Anatomical) | 7–11 mm |
| Positioning Tools | Guide wires & trial spacers |
| Insertion & Extraction Tools | Driver shafts, handles, removal drivers |
